Hang tag UV digital inkjet printer

1、 Market positioning and core printing performance



• The global RFID tag market is growing rapidly: In 2022, the global RFID tag market size was 5.87 billion US dollars, and it is expected to reach 12.01 billion US dollars by 2025, with a compound annual growth rate of 8.7% from 2022 to 2025. It is expected that the segmented RFID tag market will reach $4.874 billion by 2025 and $8.752 billion by 2032. The main driving forces are retail automation, logistics tracking, and anti-counterfeiting traceability. The hang tag UV digital inkjet printer is highly integrated with UV inkjet, RFID reading and writing, visual quality inspection, automatic waste removal and replenishment, and is suitable for mass production of individual RFID tags, clothing hang tags, cards, tickets and other individual tags. This device is positioned as the core equipment of intelligent manufacturing production lines, helping label manufacturing enterprises achieve efficient and high-precision digital production.

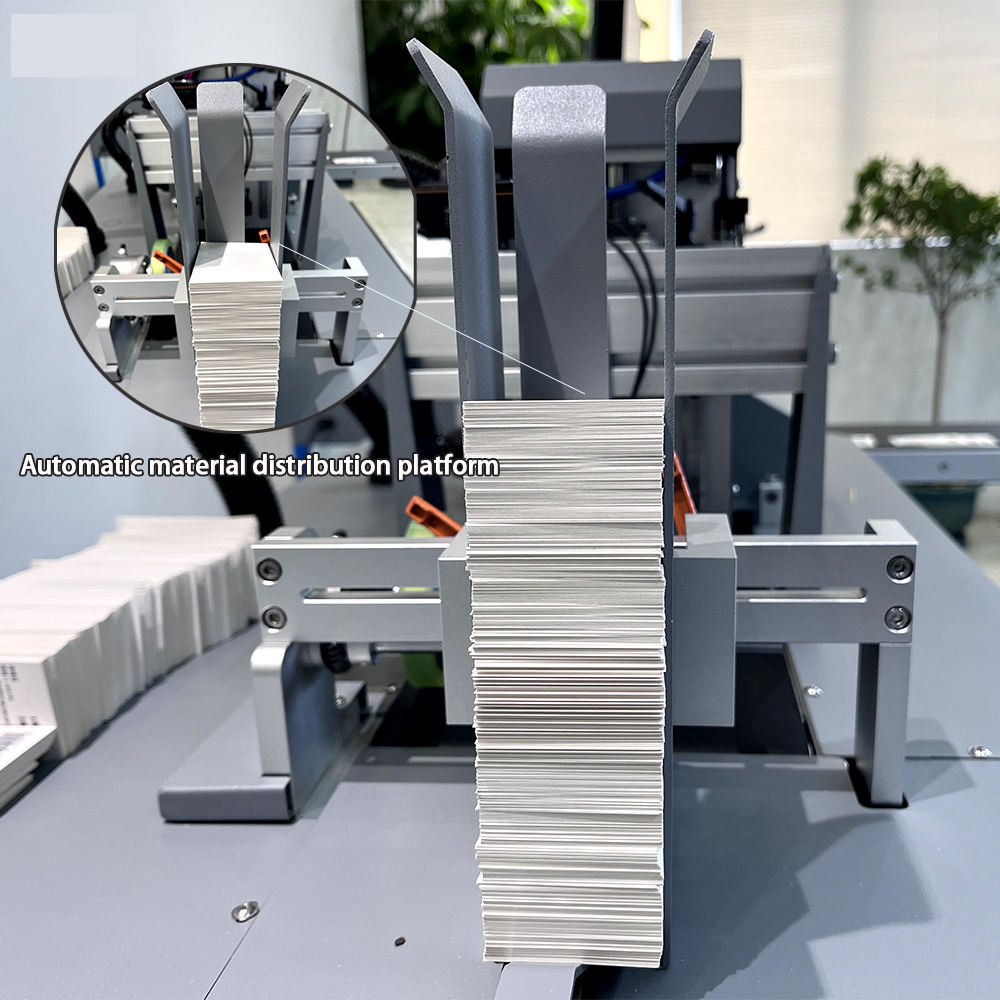

• The high-speed production capacity greatly improves output efficiency: the hang tag UV digital inkjet printer prints at a speed of 75 meters per minute (CMYK four-color), and prints at a speed of 50 meters per minute in CMYK+W mode. The RFID encoding speed is 15 pieces per second (approximately 54000 pieces per hour). Label width 30-150mm, compatible with single sheet and roll feed. Taking clothing RFID tags as an example. One device can produce over 100000 pieces per day, greatly reducing the delivery cycle of orders. Technical parameters: Printing speed: 50-75m/min Encoding speed: 15 sheets/second Label width: 30-150mm Feeding method: roll/sheet



• High precision printing supports QR codes and small font sizes: the maximum physical resolution is 1200 × 1200 dpi, and the minimum ink drop is 3.5 picoliters. Print QR codes, Data Matrix, and other QR codes with barcode levels of A/B. In addition, it is clear and distinguishable in 3pt font size, suitable for fine anti-counterfeiting patterns and micro texts. Technical parameters: Printing resolution of 1200 × 1200dpi, vertical resolution of 200-1200dpi (adjustable); 3.5pl is the smallest ink dot.



2、 Color expression, personalized customization, and material compatibility



• Colour saturation and multicolour configuration meet brand requirements: The standard configuration of this device is CMYK four colours, with optional white ink (W) and OGV extended colour gamut, covering most Pantone colour codes. By using an LED-UV cold light source for curing, printing, and drying, the energy consumption is reduced by about 70% compared to mercury lamps, and there is no risk of thermal damage. Colour settings: CMYK+W/CMYK+W+OGV; Curing method: LED UV lamp (pre-curing + main curing). According to RoHS standards, the content of volatile organic compounds is low.

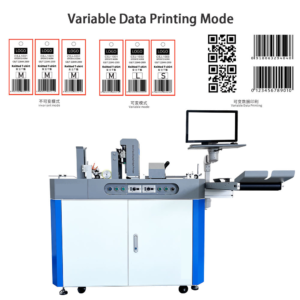

• Personalised customised printing for flexible production: This device can use variable data layout software to print variable QR codes; barcodes (such as Code128); graphic logos; custom numbers; serial numbers; dates; batch numbers; multilingual text; and database field mappings. This device can be connected to ERP/MES systems to easily achieve personalised production of small batch and multivariety orders, meeting the anti-counterfeiting and traceability needs of brand merchants for one product and one code.



• Strong material compatibility and durable design: suitable for media such as copperplate paper, synthetic paper PET, BOPP, PE, PP, PVC, aluminium foil, cardboard, speciality paper, etc. For materials with low surface energy, corona treatment can be chosen to improve adhesion, and UV ink can be cured to achieve wear resistance, water resistance, and chemical resistance, with a thickness of 0.1-1 mm (approximately 60-600 g/m²). This device uses industrial-grade piezoelectric nozzles with a service life of ≥ 5 years (depending on maintenance). The metal structure allows for continuous production for 7 x 24 hours and is equipped with automatic cleaning and moisturising functions. Has passed ISO9001, CE, FCC and other certifications. Work environment requirements: temperature 20-27°C, humidity 40-70% RH.



3、 Intelligent closed-loop function and multi format encoding capability

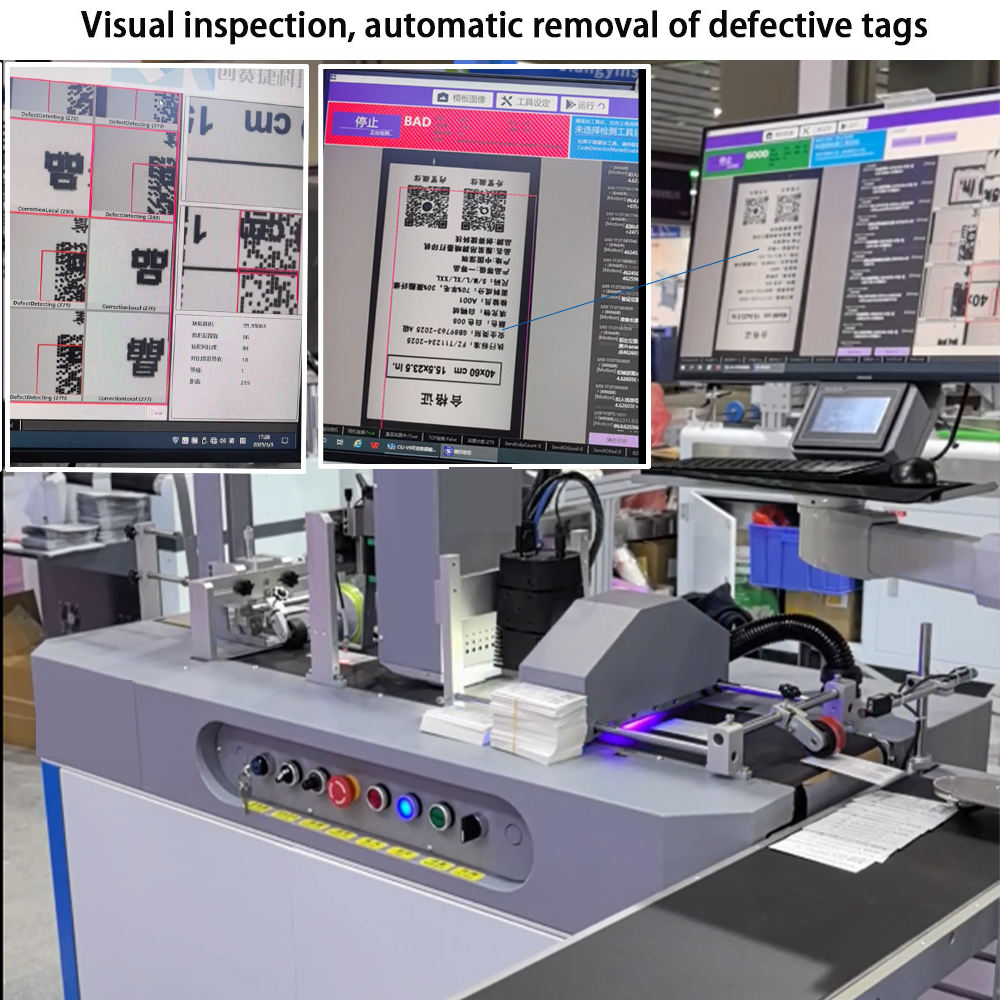

• Read and write detection and AI visual quality inspection ensure label quality: The hanging tag UV digital inkjet printer adopts a closed-loop system of "RFID encoded visual quality detection defect rejection automatic replenishment". The read-write detection process includes TID read verification (verifying the qualification of RFID chips), EPC code writing (writing EPC based on upper computer data), and EPC read back verification (comparing to ensure the correctness of writing). Real time artificial intelligence visual quality inspection, detecting the integrity of printed content, QR code/barcode level (ISO/IEC standard), and comparing the consistency of RFID chip information with surface codes. Technical parameters: RFID protocol: ultra-high frequency RFID (ISO 18000-6C, EPC Global Class1 Gen2). Read/write station: TID verification+EPC write+EPC read/write verification (multi station parallel). Quality inspection: AI vision+OCR/OCV+ISO/IEC barcode quality rating.

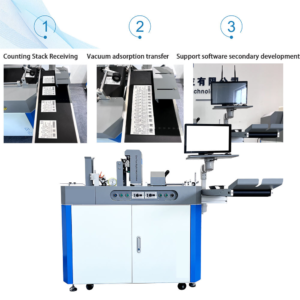

• Automatic removal of non-conforming labels and automatic encoding function: When the system detects EPC write failure, data mismatch, missing or offset printing, unreadable barcode, RFID unable to read correctly, etc., the dual station rejection system will automatically mark and reject defective products. Once taken away, the system will automatically generate a replenishment task: obtain the code content of the missing label, produce qualified labels of the same specifications, replace the initial code without stopping production, and ensure the continuity of the finished product quantity and code. The supplementary logic is based on database mapping, which does not require manual intervention and greatly reduces the scrap rate. Dismantling method: Dual station automatic dismantling. Automatic functions: automatic counting, automatic calibration (optional), electrostatic precipitator (standard).



• The multi format encoding printing capability covers various identification requirements: it can print one-dimensional codes (Code128/EAN-13/UPC...), two-dimensional codes (QR/data matrix/PDF 417...), anti-counterfeiting codes, variable image logos, custom numbers/text/serial numbers, and database content. Whether it is retail barcodes for clothing labels or serialized tracking codes for industrial products, printing and RFID encoding can be completed in one go, making the surface code completely consistent with the chip information.



4、 Summary of main application scenarios, user experience, and technical parameters



• Four core application scenarios drive industry upgrading: printing brand identification, size, price, and RFID code simultaneously to achieve fast inventory, self checkout, full process traceability, and store anti smuggling. Secondly, batch production of RFID tags: RFID wet INLAY or single tag batch production, synchronized with EPC writing and variable barcode printing. Suitable for logistics luggage management and asset tracking. 3、 Anti counterfeiting traceability, one code for each item: QR anti-counterfeiting code, serial code, UV invisible ink printed on cards, tickets, and receipts, in compliance with drug regulatory code requirements, and food traceability compliance. 4. Electronic products and industrial labels: LED cold light source curing, does not damage thermal sensitive materials and electronic components, suitable for industrial warning signs and anti-static labels, resistant to high temperatures and chemical environments.



• Real user experience and comprehensive device parameters: Ms. Li, the supply chain manager of a clothing brand in Dongguan, feedback that after adopting the device, it only takes 3 seconds/sheet from blank labels to finished products. During the outsourcing process, the defect rate decreased from 1.2% to 0.3%, the customer complaint rate decreased by 40%, and labour costs were saved by approximately 25% annually. Mr Wang, a manufacturer of RFID tags in Shenzhen, stated that the device integrates printing, coding, and quality inspection in one line, with a daily output of 80000 electronic tags and automatic patching, resulting in a yield rate of 99.2%. The overall technical parameters are: The nozzle type is an industrial piezoelectric UV nozzle (compatible with Ricoh/Kyocera) with a printing resolution of 1200 × 1200 dpi and a printing speed of 50-75 metres per minute. Encoding speed: 15 per second Printing width: 54-320mm Applicable media: Copperplate/synthetic paper/PET/BOPP/PE/PP/PVC/ Aluminium foil/paperboard Media thickness: 0.1-1 mm Curing method: An LED UV lamp system can be integrated with ERP/MES. Certification: ISO9001, CE, FCC, and RoHS

    Conclusion: With the global label industry moving towards digitisation and intelligence, hanging UV digital inkjet printers can integrate printing, encoding, detection, removal, and replenishment, which can help label manufacturers improve production line efficiency and reduce overall costs. As a large-scale intelligent equipment manufacturing base, Shenzhen can provide mature and stable equipment for customers around the world. If we want to improve the production quality and capacity of individual tags such as RFID tags, cards, tickets, etc., This device is a solution worth considering.
