Description

1、 Specification parameters

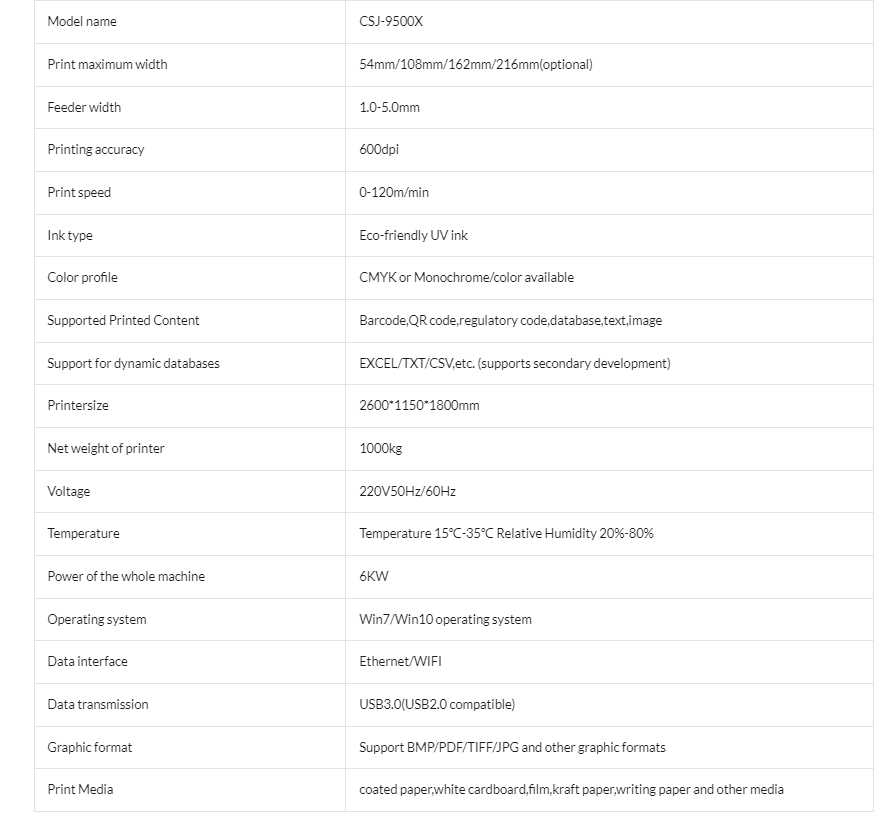

The technical specifications of roll to roll label printers directly affect the production capacity and scope of application of the equipment. The following are the core parameter configurations of a typical industrial grade roll to roll label printer for user selection reference:

2、 Product Features

According to Smithers research data, the global digital packaging printing market is expected to continue expanding at a compound annual growth rate of 10.9% between 2025 and 2030, reaching a scale of $36.9 billion by 2030. The roll to roll printing market has reached 14.26 billion US dollars in 2024 and is expected to grow at a compound annual growth rate of 8.35% to 23.09 billion US dollars from 2025 to 2030. In digital label printing, roll to roll technology holds approximately 70% to 75% of the market share. As a mature industrial grade digital printing equipment, roll to roll label printers are gradually replacing traditional printing machines and becoming the core equipment for label production enterprises.

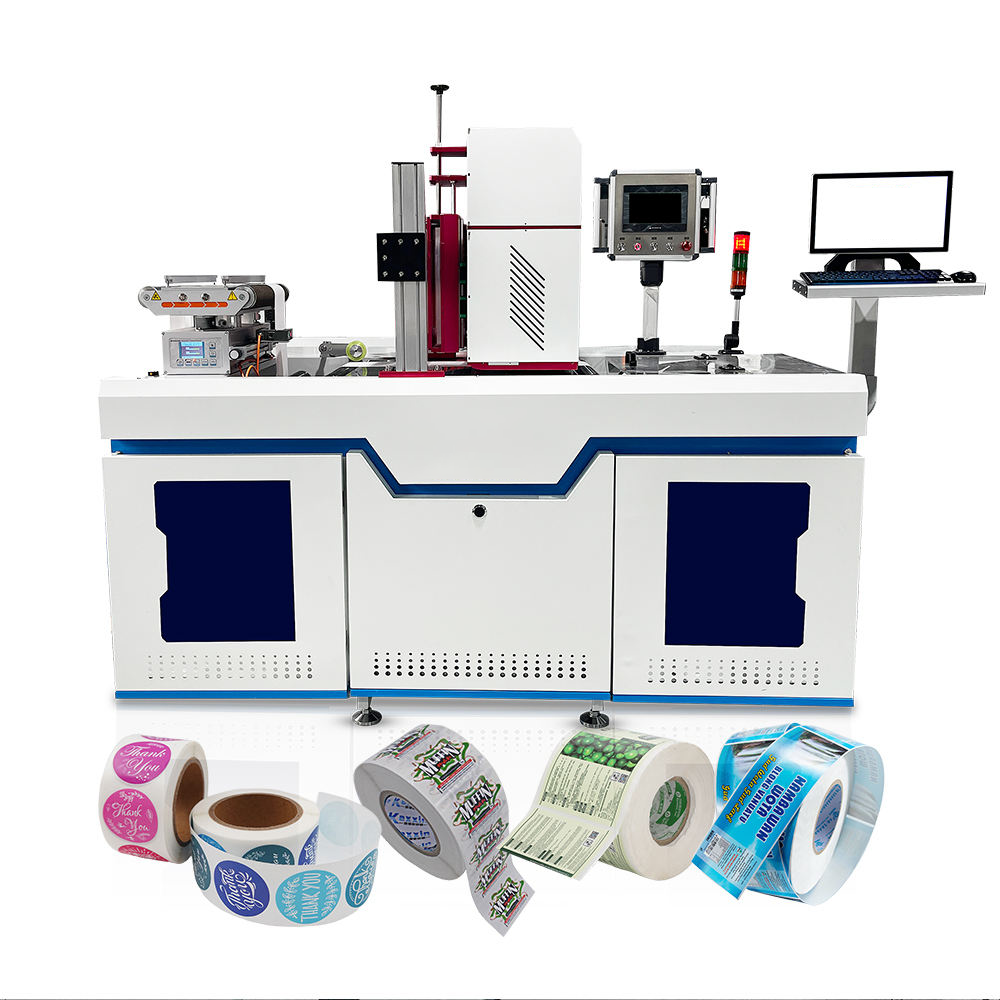

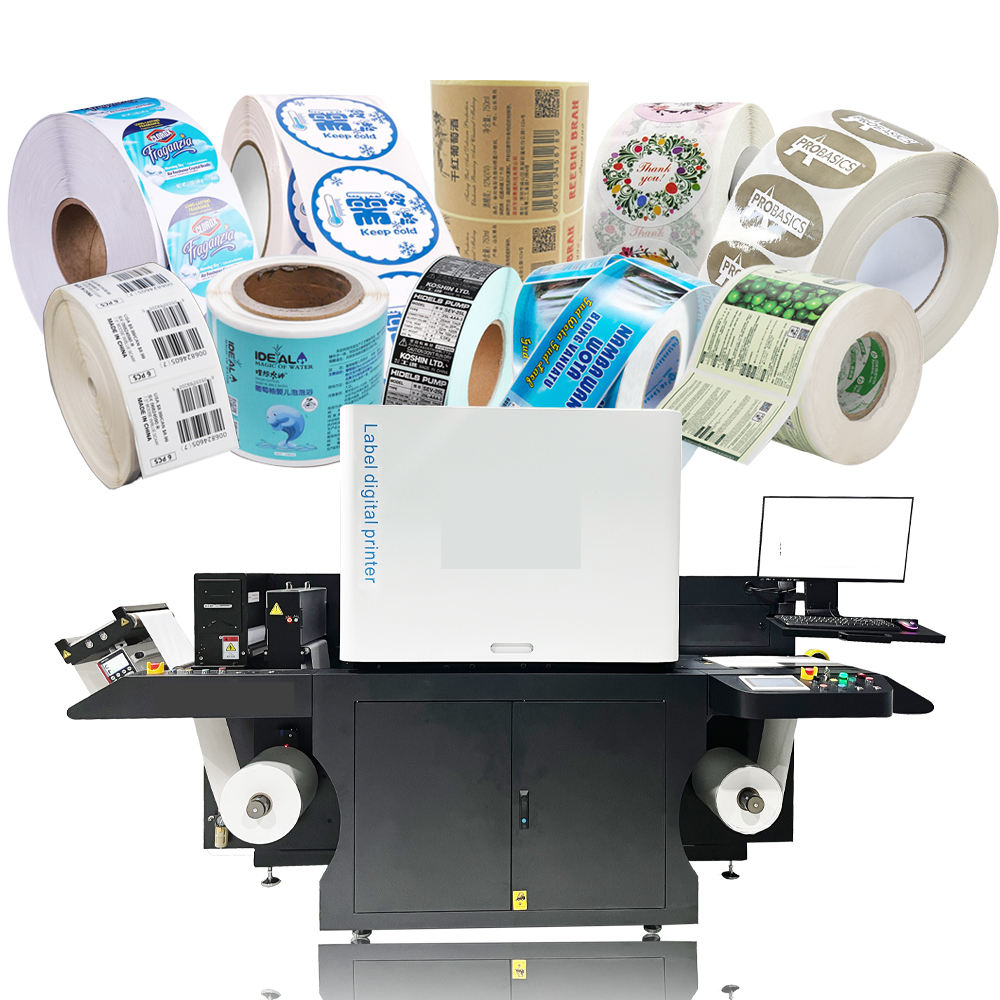

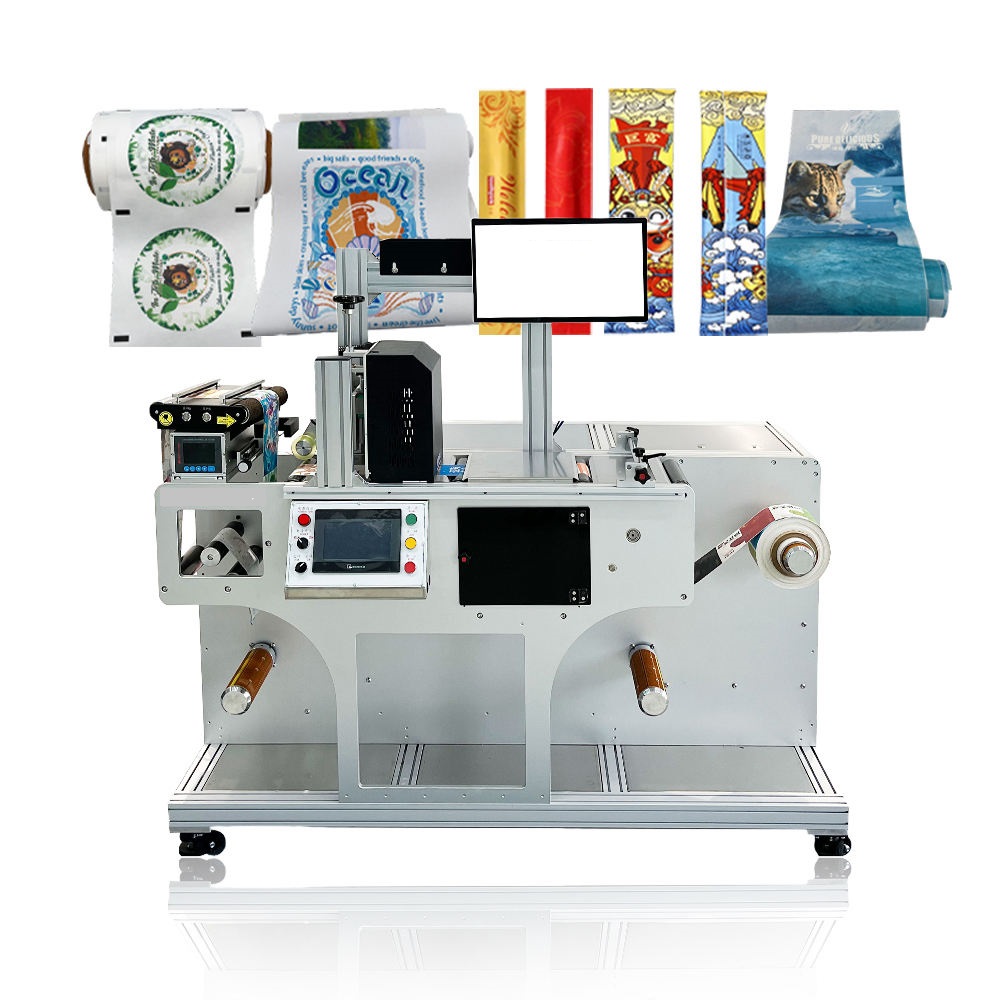

The roll to roll label printer adopts digital printing technology to automatically unwind, print, and retract roll shaped raw materials, achieving continuous automated production. This device is widely used for printing various media such as coated paper, synthetic paper, writing paper, double adhesive paper, PET, PVC, PE composite film, etc. It is suitable for the production of wine labels, cosmetics labels, labels containing variable information, and various stickers. According to market demand and actual production line operation requirements, roll to roll label printers typically integrate the following core functional modules:

High speed continuous printing. The roll to roll printing method supports uninterrupted production, and the equipment production speed can be adjusted according to accuracy requirements. Taking the mainstream Single Pass digital label printing machine as an example, the production mode speed can reach 50 meters per minute, and the high-speed mode can reach 75 meters per minute. The printing speed of carbon powder equipment using LED technology is 6-18 meters per minute, and the printing speed of thermal foaming inkjet technology can reach 3.6-18 meters per minute. The high-speed production capacity significantly shortens the production cycle of small batches and multiple styles of labels, meeting the core demand of the end market for fast delivery.

High precision printing. The printing resolution of the device directly affects the clarity and readability of the label product. The printing resolution of industrial grade roll to roll label printers can reach 600 × 600dpi to 1200 × 2400dpi. In high-precision mode, the printer can clearly display QR codes, micro text, fine lines, and small characters, ensuring that the QR code has a good recognition rate on the scanning device. At the same time, grayscale printing technology allows for the generation of ink droplets of different sizes according to image requirements, resulting in a more natural and smooth gradient transition of the image, enhancing the overall presentation effect of the label.

Color saturation and color configuration. The equipment comes standard with CMYK four-color printing, and the color gamut can cover about 80% of Pantone color cards. For transparent material printing, white ink configuration can achieve high coverage and opaque printing. Expandable purple and orange ink channels, further expanding the color gamut range, enhancing color saturation and color reproduction. UV ink, after being cured by UV-LED, has high weather resistance, water resistance, UV resistance, and wear resistance, enhancing the durability of labels in storage, logistics, and end use processes.

Personalized customization and variable data printing. The system supports roll to roll integrated output, which can print various data contents such as one-dimensional codes, two-dimensional codes, anti-counterfeiting codes, images, custom numbers, text, serial numbers, database information, etc. The device supports two data detection modes: alignment detection and readability detection. The latter can evaluate the level and readability of variable codes such as QR codes and barcodes. In terms of label anti-counterfeiting solutions, variable data printing combined with QR code technology can effectively prevent products from being counterfeited or diverted.

Read and write detection and automatic removal of complement codes. The detection system integrated with industrial grade high-speed color line scanning cameras can compare the identified data with the data in the database one by one, and detect problems such as incorrect codes, duplicate codes, missing codes, and bad codes in a timely manner. After discovering data quality issues, the detection system will give an alarm prompt and remove unqualified labels online. When the label is missing a code, it can be automatically generated and printed using the complement function to improve the integrity of the label information. An optional online visual inspection system can be used to verify the integrity of printed information in real-time.

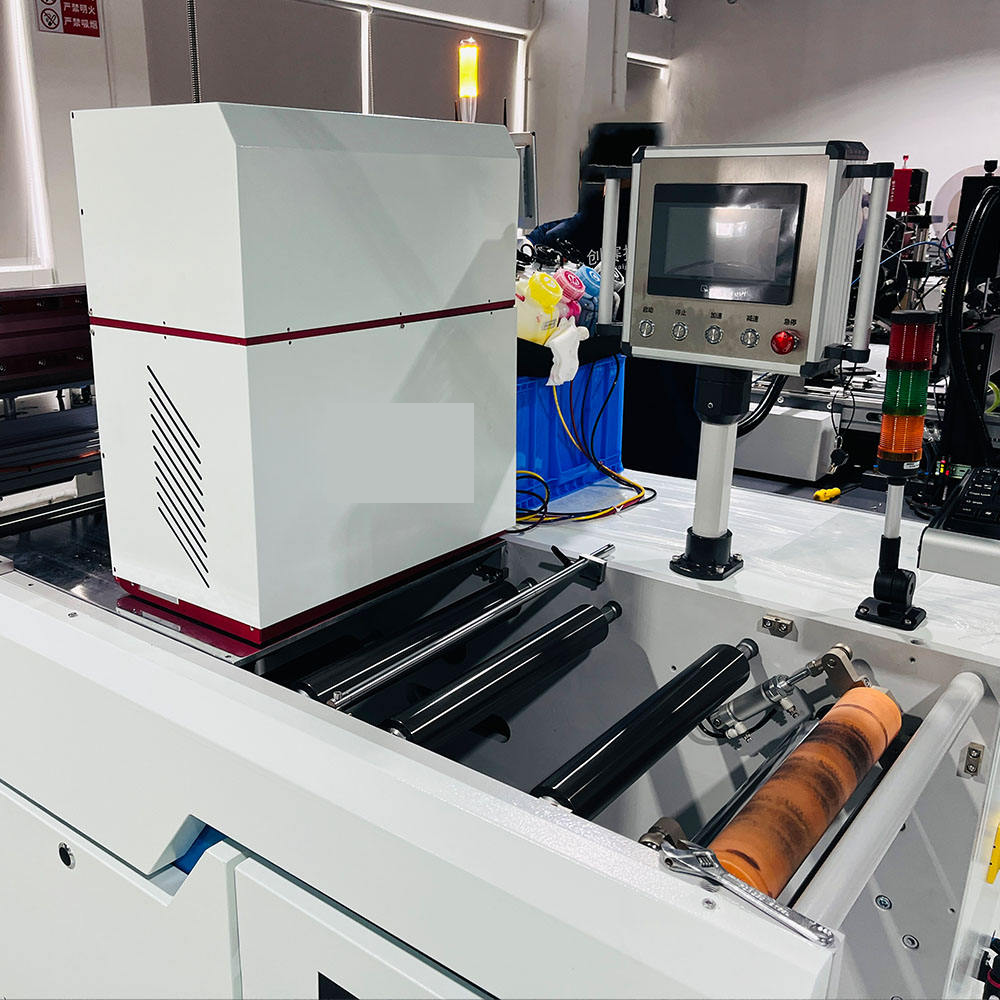

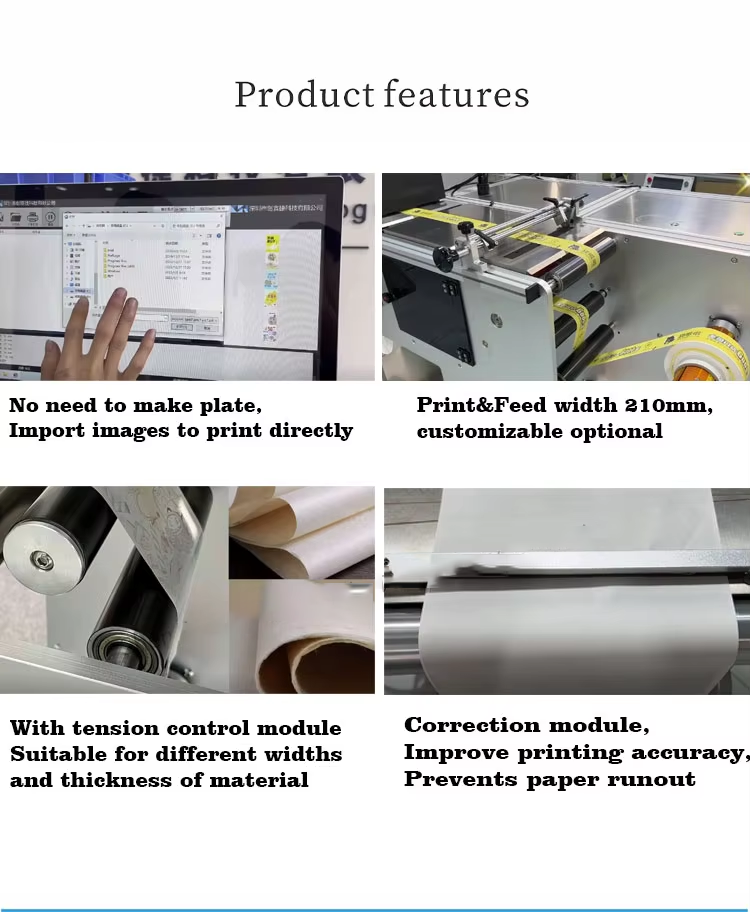

Material compatibility. The equipment adopts a servo driven winding system to achieve constant tension control, adapt to substrates of different thicknesses and hardness, and is compatible with various media such as PET, BOPP, PE, BOPA, PP, coated paper, synthetic paper, art paper, etc. The applicable range of medium thickness is 20-400 microns, and the width supports 80-340 millimeters. Suitable for die-cutting gap labels, black label labels, and continuous roll materials.

Robust design and mature technology. This device adopts industrial grade on-demand inkjet nozzles and grayscale printing technology, and the service life of industrial grade nozzles can reach 100 billion inkjet cycles per nozzle. It has pre-treatment functions such as anti-static, automatic calibration, and dust removal. The fully automatic winding system is equipped with automatic tension adjustment, ultrasonic deviation detection, and online quality inspection to ensure the stability of the coil during high-speed operation.

3、 FAQ (Frequently Asked Questions)

Q1: What types of labels can roll to roll label printers print?

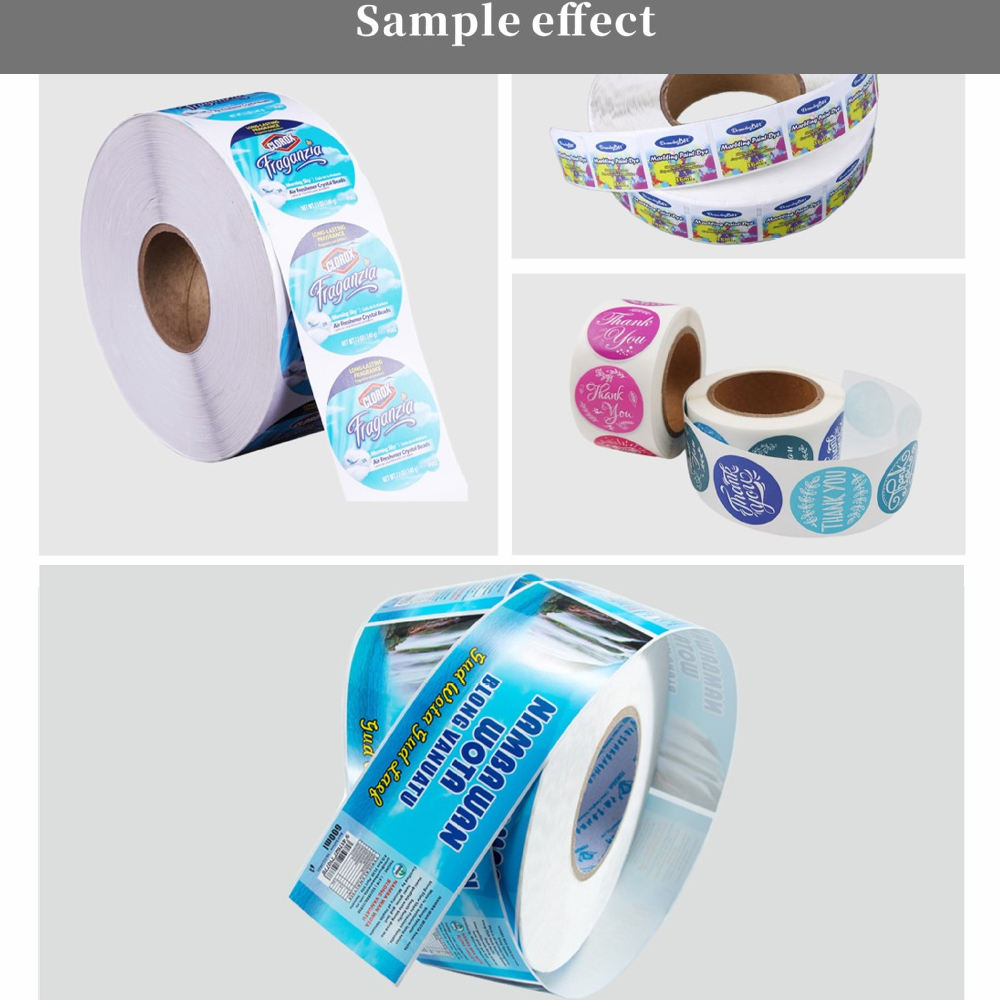

The printing range is wide, including adhesive labels, alcohol labels, cosmetics labels, daily chemical labels, food labels, drug labels, anti-counterfeiting labels, variable data labels, clothing labels, industrial labels, etc. Suitable for copperplate paper, synthetic paper, writing paper, double-sided adhesive paper, PET, PVC, PE composite film, etc.

Q2. Can the machine print on both sides of transparent materials and paper?

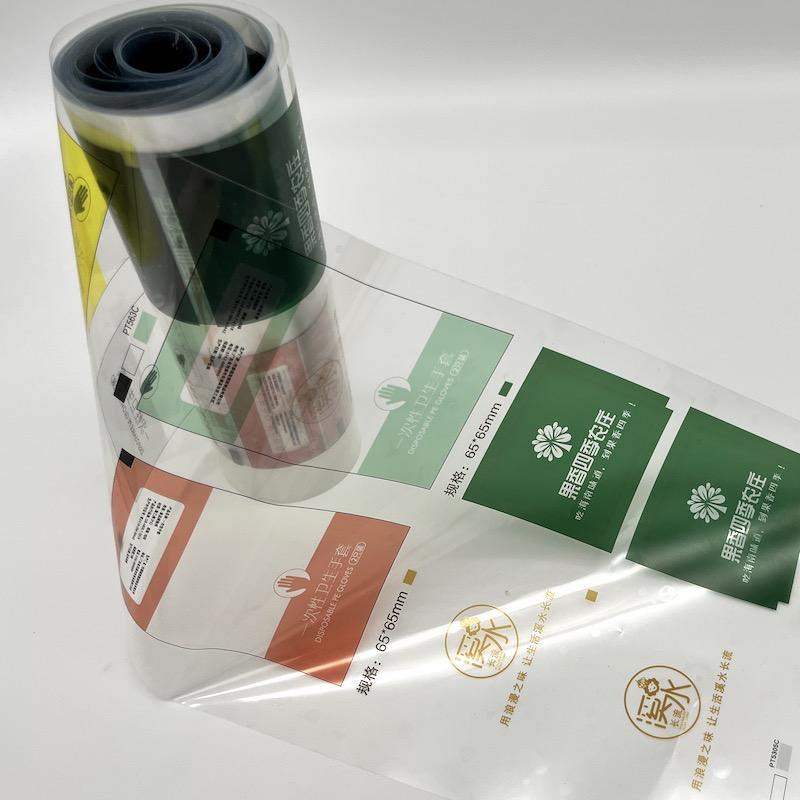

Supporting the selection of white ink, it can achieve high coverage and opaque printing, suitable for PET and BOPP transparent film materials. It is also suitable for special surface materials such as laser paper and glossy photo paper. Some models can expand the dual white printing channel to improve the white ink coverage effect.

Q3: How can the equipment ensure a pass rate and reduce the scrap rate?

The roll to roll label printer is equipped with an online high-speed visual inspection system, which performs 100% inspection of variable information and printing appearance through a line scanning camera. When errors, duplicates, bad codes, or poor printing are detected, the label will be automatically removed. When the label is missing a code, the system automatically supplements the code and reprints it. The whole process closed-loop quality control ensures the qualified rate of finished products.

Q4: How many labels can a roll to roll label printer produce per day?

Taking a roll to roll digital printing machine with a speed of 50 meters per minute as an example, based on 60mm long labels, approximately 16 labels are printed per meter of roll. The equipment produces about 800 labels per minute and can produce about 380000 labels by working continuously for 8 hours a day. The speed of LED toner type equipment is about 7-18 meters per minute, and the daily output is adjusted according to the precision configuration and process requirements. The specific output is also affected by factors such as label size arrangement, width utilization, and production roll change downtime.

Q5: Where is the origin of the equipment? To which countries can we export?

The equipment manufacturer is located in Shenzhen, China and strictly produces according to international quality standards. The product has obtained CE and other export certifications, targeting global overseas markets, mainly exported to North America, Europe, Southeast Asia, the Middle East, South America and other regions. The device supports dual voltage configuration of 110V/220V, adapts to power standards of different countries, and provides multilingual interface and international after-sales service support.

Q6: What technical requirements does the equipment have for operators?

It features a large touchscreen interface, intuitive graphical menus, and remote monitoring and management. Most models allow for one click submission of assignments, allowing ordinary operators to work independently after short-term training. The system has functions such as automatic rewinding and calibration, fault alarm, automatic tension adjustment, reducing technical barriers and operator training costs.
