Description

The modern household paper industry is rapidly evolving and the conventional printing methods are no longer sufficient to fulfill the demands of brands for personalization, variable data and quick response. The advent of digital paper towel printing machines has offered a new technological solution to produce various products such as boxed facial tissues, tissue paper, printed handkerchiefs, wallet paper, kitchen tissues and roll toilet paper. This article will detail the core technical characteristics and practical application value of tissue digital printing machines from three dimensions of product functionality, technical specifications, and multi-scenario applications.

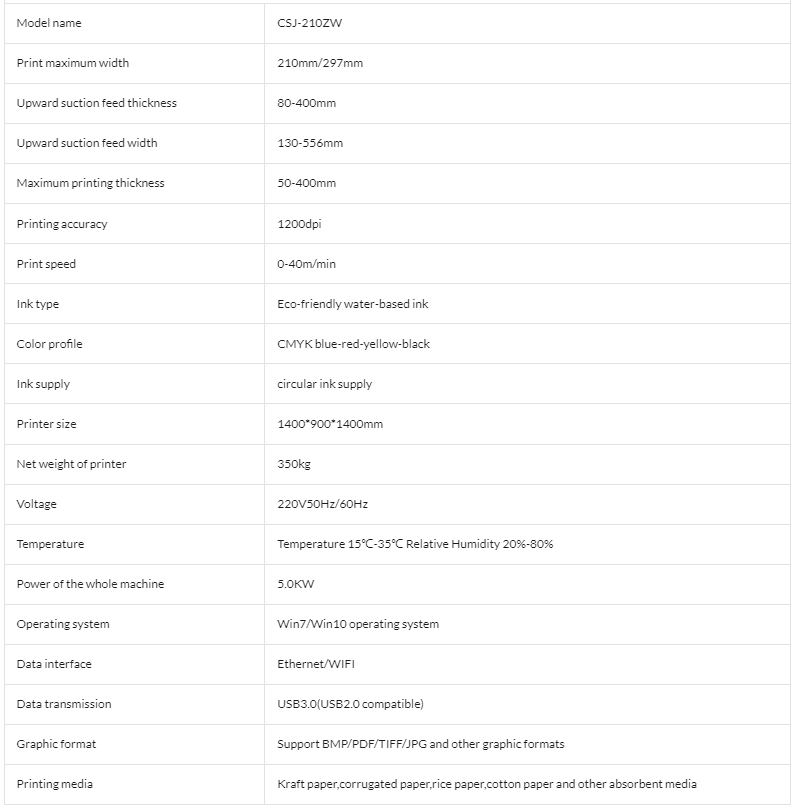

1.Parameters of digital printing machine for paper towel

2.Features of Product

High precision imaging capability and fast production

The digital paper towel printing machine is a technological breakthrough in two dimensions, speed and accuracy. The equipment can achieve 200 meters per minute printing speed in high-speed production mode, the maximum printing speed can reach 3600 meters per hour, which can meet the production needs of large quantities of orders. In terms of accuracy, the device offers true resolution output of up to 1200 × 1200 dpi, with minimum ink droplet of 2-10 picoliters and variable ink droplets, which allows very fine pattern restoration. This high precision feature is closely related to the readability and stability of QR codes. According to the official technical standard of QR code , the size of a QR code module is 0.17 mm when printed by the printing equipment with 600 dpi and 4-point configuration, and the resolution of the scanner must be lower than this value in order to read smoothly. The high-resolution output of the tissue digital printing machine ensures that the QR code can maintain good readability on a small area, which provides a reliable technical basis for product traceability verification and brand interaction.

Multi-ink configuration options, wide color gamut

One of the basic quality indicators of tissue printing is the expression of color. Tissue digital printing machine supports CMYK four-color basic configuration, some models can extend to 8-color or even 12-color configuration. It can be equipped with 6-8 print heads and supports multiple ink channels, such as CMYK, orange, red, blue, green and white. Industry data shows that a CMYK+red+green+white ink config can increase the color gamut by more than 15%, while providing a deeper black performance and brighter, more opaque white ink. This wide color gamut capability allows complex brand graphics and photographic-grade images on boxed face towels and tissues, providing strong technical support for product visual marketing.

Smart printing system for variable data

Variable Data Printing (VDP) is a digital printing technology, which can dynamically replace certain content (text, image, barcode, etc.) of each print in batch printing, so as to achieve “thousands of prints, different content” personalized output. This technology is fully integrated into the tissue digital printing machine, which can support printing different types of variable contents, such as one-dimensional codes, two-dimensional codes, anti-counterfeiting codes, images, custom numbers, text, serial numbers, database-associated information and the like. Specifically, this function can print different table numbers, dish information or interactive QR codes in the catering scenario, so as to realize the integration of table scanning and ordering and member points functions. In the cultural and creative product scene, each printed handkerchief or wallet paper can be given a unique serial number or blessing message to increase the collection value and emotional added value of the product. In the festive gift scene, different customer names and exclusive greetings can be automatically printed in the same batch, and batch differentiation customization can be realized without stopping the machine to change the version.

System for auto complement deletion and integrated read-write detection

Quality control is the core competitiveness of industrial digital printing equipment. The tissue digital printing machine is provided with a high precision online visual inspection module, which scans each printed product in real time with a CCD high speed camera system. The content of inspection covers readability of QR codes/1D codes, completeness of graphics and text, consistency of colors and accuracy of coding information. In case of printing defects or incorrect labels, the system automatically activates the rejector to discharge the defective products from the production line, ensuring 100% quality of the factory products. It is worth mentioning that when the detection equipment detects that there is no coding information on a certain product, the system has the function of automatically supplementing the coding. By calling the database, the missing number, QR code or serial number can be printed in situ or at a preset position. The error correction can be completed without manual intervention. This intelligent closed-loop control mechanism significantly reduces the quality loss rate and provides a strong quality guarantee for mass production.

Strong, durable design • Compatible with many different materials

The tissue digital printing machine adopts industrial-grade body structure, high-precision linear motors and steel guide rail systems to ensure printing stability and long-term durability under high-speed operation. The equipment is equipped with dual-station tension adjustment device and vacuum adsorption platform to ensure the flatness and accurate positioning of thin substrates during high-speed movement. As for material compatibility, the equipment is capable of handling a range of substrates, from lightweight and thin napkins (minimum 20 g/m2) to thick kitchen tissues. It is suitable for rolling paper, flat paper, embossed napkins and other media forms, truly achieving a set of equipment to meet diverse production needs.

3.Use cases

Catering and Customization Scenarios: Rapid Response to Market Demand

Personalized tissue printing is attracting attention in the catering industry. Whether it is customized logo napkins for high-end restaurants, brand marketing tissues for chain restaurants, or festival theme limited edition napkins, digital paper towel printing machines can achieve small-batch customized production with a very short lead time. In contrast to traditional printing, digital printing does not involve plate making, greatly reduces the time needed for production preparation and can cut start up costs by approximately 50%. In terms of food safety, the equipment can be equipped with food-contact-grade water-based ink, and the printed materials can directly contact food, which meets the increasingly strict food safety regulations in overseas markets. Digital printing can print different patterns on different napkins in customized cultural and creative napkins. Different patterns can be mixed and matched in the same batch to achieve multiple mixed products without stopping the machine to change patterns. This feature has a high practical value for brand marketing activities and festival gifts.

Creative and Gift Scenarios: Unique Identification to Strengthen Brand Value

Printed handkerchief paper and wallet paper are cultural and creative products that are gradually becoming the medium of emotional connection between brands and consumers. The variable data printing function of the tissue digital printing machine can assign a unique serial number, QR code or customized blessing message to each handkerchief or wallet paper, upgrading products from “standardized consumer goods” to “personalized carriers”. A unique serial number tracks every product from start to finish, making it easier to manage quality and avoid counterfeiting. At the same time, QR codes combine product traceability, marketing interaction and data collection. According to different holiday themes, such as Christmas, Valentine’s Day, Mother’s Day, etc., brands can quickly design and produce multiple limited edition printed handkerchief paper products for the festival gift market, and achieve a flexible supply mode of “small batch, multiple styles” with the flexibility of digital printing.

Multi-category household paper scenario: One machine for all applications to reduce investment costs

The digital paper towel printing machines also have a good flexibility in the product lines of standardized products such as boxed facial tissues, vacuum paper, kitchen tissues and roll toilet paper. The device’s variable data function can print production date, batch number, expiry date and regulatory traceability code in real time, meeting the compliance requirements of overseas markets for full process traceability of products. The equipment is suitable for products with large roll diameter such as kitchen tissues and toilet paper rolls. Maximum roll diameter is 1800 mm. Unwinding and unwinding systems with high-precision tension control devices to ensure printing stability under high-speed operation of large roll diameters. The machine is multi-functional and this means tissue manufacturers do not need to buy a number of printing equipment for different products, which can greatly cut down fixed-asset investment costs and simplify the complexity of the production line.

The tissue digital printing machine is a complete digital printing solution for diversified products production including boxed facial tissues, vacuumed paper, printed handkerchief paper, wallet paper, kitchen tissues and roll toilet paper, with high-speed production efficiency, high-precision variable data printing capability, wide color gamut color reproduction performance, a sturdy and durable industrial design, and broad material compatibility. The device has read-write detection and automatic code removal functions, and can output various formats such as QR codes, anti-counterfeiting codes, one-dimensional codes, custom numbers, database serial numbers, etc., to meet the stringent requirements of the global market for personalized customization and full process traceability. Our headquarters is in Shenzhen, taking advantage of the manufacturing industry chain in China, and our equipment is well sold in global overseas markets. For procurement requirements or technical questions, please contact our technical team for detailed proposal quotations and sample support.
